5-Bar Screen Door

Five-bar screen doors are a popular choice for residential and commercial entrances, featuring a sturdy frame to withstand impacts. Door comes with five vertical bars on bottom section of door. Constructed from high-quality, durable materials designed to withstand the test of time, ensuring long-lasting performance and reliability. They provide excellent ventilation and visibility while effectively keeping insects and debris out, making them both practical and functional. Their combination of durability, functionality, and aesthetic appeal makes them a versatile addition to any entryway.

In Stock:

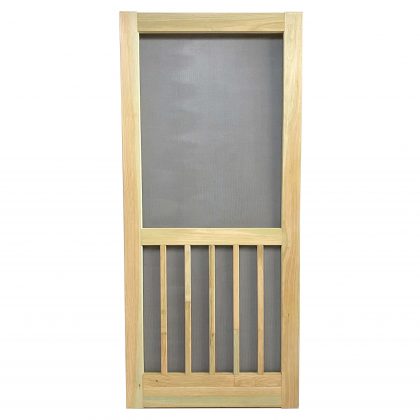

The Paul Argoe Style 455 W. Pine Screen Door is a popular choice among customers. Constructed entirely from high-quality clear White Pine lumber, offering durability and a natural aesthetic. The door measures 1-1/8″ in thickness and features mortise and tenon construction, ensuring durability. Made in the U.S.A., this well-constructed door combines quality craftsmanship with practical features for long-lasting use.

Special Order:

Cobblestone Mill Woodworks offers a stylish 5-bar screen door available in clear vertical grain western red cedar or clear Sapele hardwood. Designed for durability and weather resistance, these doors are ideal for harsher climates or staining preferences. They feature mortise and tenon joinery with waterproof glue and easy-to-replace screens with 1/8” spline. Replacement kits, including screen, spline, and installation tool, are available. Please allow 4-6 weeks to arrive.

Hardware for the 5-bar screen doors are sold separately.

5-Bar Screen Door
5-Bar Screen Door - Image 2
5-Bar Screen Door - Image 3
5-Bar Screen Door - Image 4
5-Bar Screen Door - Image 5

Additional Information

White Pine Stocked Door:

Protect clear white-pine screen door as follows:

  • Seal all cut/exposed edges (top, bottom, end grain) before installation—multiple coats; Q8 Log Oil or WoodLife preservative recommended for rot protection.
  • Finish: either stain + exterior clear topcoat or prime + two coats of exterior paint; solid stain/paint gives best UV protection.
  • Pay special attention to bottom rail: bevel/drip edge, seal thoroughly, and consider a metal/PVC threshold strip.
  • Use stainless or hot-dip galvanized fasteners and corrosion-resistant hardware; seal/paint spline and screen channel.
  • Install White Pine doors with an overhang if possible.
  • Inspect annually; touch up cuts and recoat every 2–5 years (more often for clear finishes).
  • 2/8 and 3/0 available; other widths (e.g., 2/6) can be special ordered—ask about factory edge sealing.



Door Profile:
stiles                        3-5/8″
top rail                      3-5/8″
center rail                 3-3/4″
bottom rail                7-1/4″
vertical bars (5)        1-1/4″
finished thickness   1-1/8″



Cedar and Sapele Hardwood Special Order Doors:

Protect cedar and sapele hardwood screen doors as follows:

  • Seal all cut/exposed edges (top, bottom, end grain) before installation—multiple coats. Cedar is naturally rot-resistant but still needs end-grain protection; sapele is dense and durable but benefits from sealing.
  • Finish: either stain + exterior clear topcoat or prime + two coats of exterior paint. Semi-transparent or solid stain preserves appearance; paint gives strongest UV/wear protection. Clear finishes will require more frequent maintenance.
  • Bottom rail: bevel/drip edge, seal thoroughly, and consider a metal/PVC threshold or drip strip to avoid standing water.
  • Use stainless steel hardware and fasteners for cedar; stainless or hot-dip galvanized fasteners for sapele.
  • Inspect annually; touch up cuts and recoat every 2–7 years depending on exposure and finish (cedar may weather to a silver patina if left unfinished).
  • Ask about factory edge sealing when ordering or for special widths.



Stiles & Top Rail: 3 1/2″
Middle Rail: 5 1/2″
Bottom Rail: 7 1/4″
Pickets: 1 1/4″
Sizes: 3/0x6/8, 3/0x7/0, 2/8×6/8 and Custom sizes available
